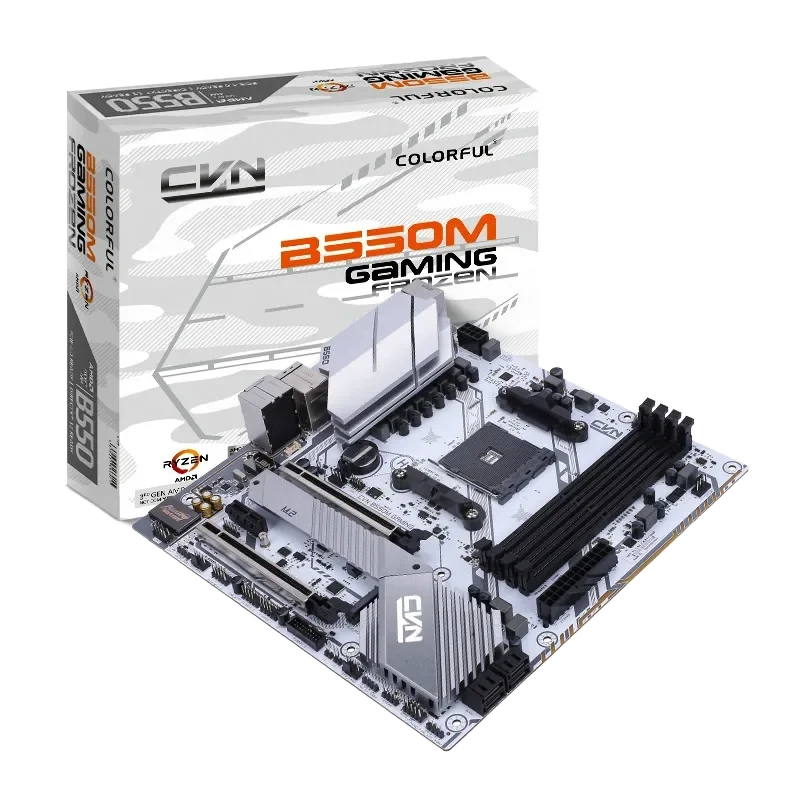

| Colorful CVN B550M Gaming Frozen V14 AM4 Motherboard – Specifications | |
|---|---|
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| CPU Support | AMD Ryzen 3000, 4000G, 5000 Series Processors (AM4) |
| Memory Support | 4 x DDR4 DIMM slots, up to 128GB, 4600+ MHz (OC) |
| Graphics Interface | 1 x PCIe 4.0 x16 Slot |
| Expansion Slots | 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1 |
| Storage | 2 x M.2 (1 x PCIe 4.0 x4, 1 x PCIe 3.0 x4/SATA) 4 x SATA 6Gb/s |
| Graphics Outputs | 1 x HDMI, 1 x DisplayPort |
| USB Ports (Rear I/O) | 1 x USB 3.2 Gen2 Type-C 2 x USB 3.2 Gen2 Type-A 2 x USB 3.2 Gen1 2 x USB 2.0 |
| USB (Internal Headers) | 1 x USB 3.2 Gen1 Header 2 x USB 2.0 Headers |
| Networking | 1 x Gigabit LAN (Realtek) |
| Audio | 7.1 Channel HD Audio (Realtek ALC892) |
| Cooling Features | VRM Heatsinks, Chipset Heatsink, White/Silver Design |
| RGB Support | ARGB Header, RGB Header |
| Power Phases | 8+2 Power Phase Design |
| Other Features | Reinforced PCIe Slot, Debug LED, BIOS Flashback |
