| Brand | ASUS |
|---|
| Brand | ASUS |
|---|---|

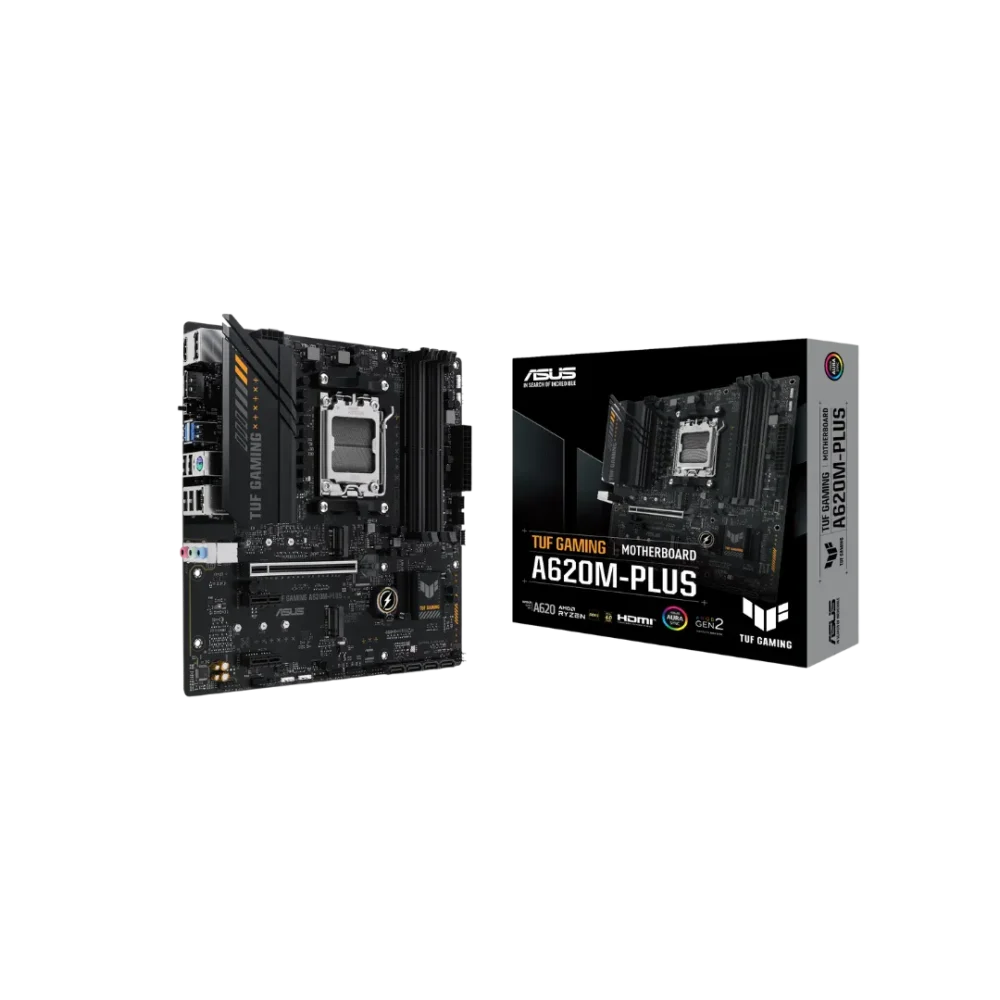

| Model | TUF GAMING A620M-PLUS WIFI |
| Part Number | 90MB1F00-M0AAY0 |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series |
| Chipset | AMD A620 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory* * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Feature | Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
| PCI Express 4.0 x16 | AMD Ryzen 7000 Series Desktop Processors* 1 x PCIe 4.0 x16 slot* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). – To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. |
|---|---|
| PCI Express x1 | AMD A620 Chipset 2 x PCIe 3.0 x1 slots |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| SATA RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. |
| Audio Chipset | Realtek 7.1 Surround Sound High Definition Audio CODEC* – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 6 1×1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band |
| Bluetooth | Bluetooth v5.3 |
| Back I/O Ports | 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port |
|---|
