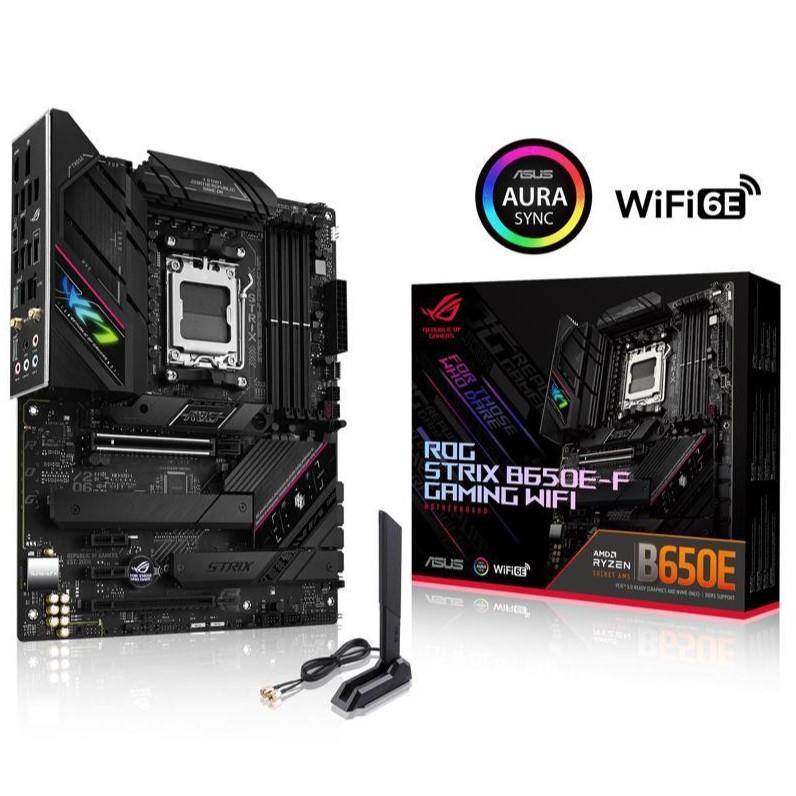

| ASUS ROG Strix B650E-F Gaming WiFi DDR5 AM5 ATX Motherboard Specifications | |
|---|---|
| Model | ROG Strix B650E-F Gaming WiFi |
| Form Factor | ATX (30.5 x 24.4 cm) |
| CPU Socket | AM5 |
| Chipset | AMD B650E |
| Supported Processors | AMD Ryzen 7000, 8000, and 9000 Series |
| Memory Slots | 4x DIMM |
| Max Memory Capacity | 192 GB |
| Memory Types | DDR5 (4800–8000+ MHz, ECC & Non-ECC, Unbuffered) |
| Expansion Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 2x PCIe 4.0 x1 |
| Storage Ports | 1x M.2 PCIe 5.0 x4, 2x M.2 PCIe 4.0 x4, 4x SATA III |
| Networking | Intel 2.5Gb Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.2 |
| USB Ports (Rear I/O) | 1x USB 3.2 Gen 2×2 Type-C, 2x USB 3.2 Gen 2 Type-A, 3x USB 3.2 Gen 1 Type-A, 4x USB 2.0 Type-A |
| Video Outputs | 1x DisplayPort, 1x HDMI 2.1 |
| Audio Codec | SupremeFX ALC4080 (7.1-channel) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | Windows 11 |
